Stable And Easy To Operate Lithium Production Line Energy Saving Advanced Tech
Lithium Production Line Description
The production line for roasting and acidizing lithium ore with lepidolite, spodumene and other raw materials configured by our company has excellent product performance, stable production condition and easy operation, which has received positive recognition from users. The kiln adopts wireless temperature monitoring system and remote intelligent variable speed kiln condition control system, which is convenient for production personnel to adjust kiln condition in real time. The raw material crystal conversion rate is high, the acidification is complete, and the lithium leaching rate and lithium recovery rate are 15% higher than the traditional process.
The energy consumption of production line can be reduced about 20% by using waste heat recovery from kiln tail for acidizing heat supplement. Cooling equipment adopts closed low temperature cycle technology, dust inlet is equipped with annular air seal device, the production workshop has a certain position in the field of dust reduction and environmental protection, effectively improve the operating environment.
Advantages
1.The production line is stable and easy to operate.
2.The kiln adopts wireless temperature measurement and monitoring system to control working parameters more effectively and accurately.
3.Strengthen waste heat recovery, energy saving effect is good.
4.The new dust removal device has good dust removal effect and low construction cost.
Parameter
Spodumene as Raw Material (Without Production of Other Products )
| Final Products | Annual Output(t/a) | Spodumene Amount(t/h) | Main Equipment Model |
| Conversion Process | Acidification Process | Ball Mill |
| Lithium LiCO3 | 5000 | 5-6 | Roasting Kiln:φ2.8×50m; Cooler: φ2.6×40m | Acidification Kiln:φ2.8×50m; Cooler: φ2.4×35m | φ1.83×6.4m |
| Lithium LiCO3 | 10000 | 10-12 | Roasting Kiln:φ3.5×60m; Cooler: φ2.4×40m | Acidification Kiln:φ3.5×50m; Cooler: φ2.4×40m | φ2.4×8m |
Lepidolite as Raw Material
| Final Product | Annual Output of Lithium(t/a) | Amount of Mixed Raw Materials (about 60% of Lepidolite) (t/h) | Main Equipment Model |
| Rotary Kiln | Cooler | Ball Mill |
| Lithium LiCO3 | 3000 | 15-18 | φ3.5×60m | φ2.5×23m | φ1.83×6.4m |
| Lithium LiCO3 | 5000 | 25-30 | φ4.2×72m | φ3×45m | φ3.2×13m |
1. Main equipment: Acidification mixer, rotary kiln, rotary cooler, Acidification kiln, raw ball mill, bag type dust collector and fan.

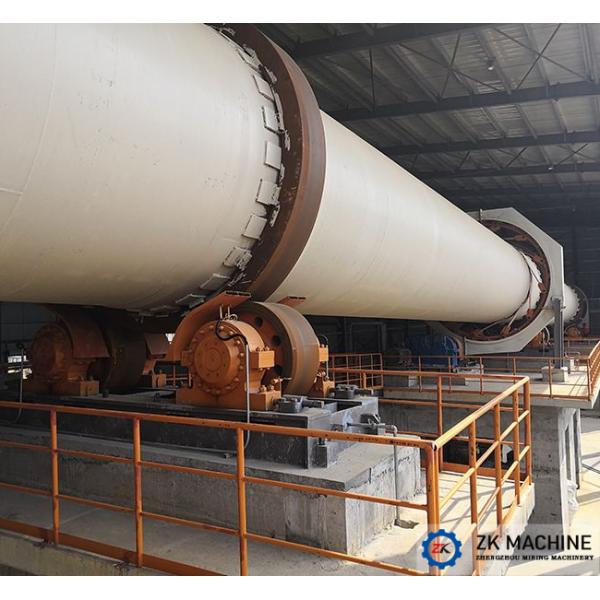

2. Rotary kiln diameter: 1.5-4.5m.
3. Calcination temperature: ~1250℃
4. Acidification temperature: ~350℃
5. The fuel of calcination:Natural gas, coal dust and coal gas
